The vigorously debated finding from the Isua greenstone or supercrustal belt, a 1,200-square-mile area of ancient rocks in Greenland.  Proponents say the rises, from .4 to 1.6 inches tall, are  biosignatures of bacteria and sediment mounds that made up stromatolites almost 3.8 billion years ago.  Critics say additional testing has shown they are the result of non-biological forces.  (Nature and Nutman et al.)

Seldom does one rock outcrop get so many visitors in a day, especially when that outcrop is located in rugged, frigid terrain abutting the Greenland Ice Sheet and can be reached only by helicopter.

But this has been a specimen of great importance and notoriety since it appeared from beneath the snow pack some eight years ago. That’s when it was first identified by two startled geologists as something very different from what they had seen in four decades of scouring the geologically revelatory region – the gnarled Isua supercrustal belt – for fossil signs of very early life.

Since that discovery the rock outcrop has been featured in a top journal and later throughout the world as potentially containing the earliest signature of life on Earth – the outlines of half inch to almost two inch-high stromatolite structures between 3.7 and 3.8 billion years old.

The Isua greenstone, or supracrustal belt contains some of the oldest known rocks and outcrops in the world, and is about 100 miles northeast of the capital, Nuuk.

If Earth could support the life needed to form primitive but hardly uncomplicated stromatolites that close to the initial cooling of the planet, then the emergence of life might not be so excruciatingly complex after all. Maybe if the conditions are at all conducive for life on a planet (early Mars comes quickly to mind) then life will probably appear.

Extraordinary claims in science, however, require extraordinary proof, and inevitably other scientists will want to test the claims.

Within two years of that initial ancient stromatolite splash in a Nature paper (led by veteran geologist Allen Nutman of the University of Wollongong in Australia), the same journal published a study that disputed many of the key observations and conclusions of the once-hailed ancient stromatolite discovery.  The paper concluded the outcrop had no signs of early life at all.

Debates and disputes are common in geology as the samples get older,  and especially in high profile science with important implications.  In this case, the implications of what is in the rocks reach into the solar system and the cosmos.  And that’s why a dozen scientists were on site to examine the outcrop in late August.

The team that disputed the initial report was led by Abigail Allwood of NASA’s Jet Propulsion Lab, a noted geologist and astrobiologist.  She is also principal investigator of a key instrument on the Mars 2020 rover that will be searching for biosignatures — the same kind of signs of past life in dispute at Isua.

It was at her instigation that this most uncommon gathering was planned, bringing together the scientific rivals as well as ten other scientists to meet at the distant outcrop to examine the putative stromatolites together, to study the geological and geochemical context and to later present their cases.

Enlarge to full screen on lower right. A pioneering three-dimensional, virtual reality look at a Greenland outcrop earlier described as containing 3.7-billion- year-old stromatolite fossils, which would be the oldest remnant of life on Earth. The video capture, including the drone-assisted overview of the site, is part of a much larger virtual reality effort to document the setting undertaken late in August. As the video focuses in on the scientifically controversial outcrop, cuts are visible in the smooth surfaces that were made by two teams studying the rocks in great detail to determine whether the reported stromatolite fossils are actually present. (Parker Abercrombie, NASA/JPL and Ian Burch, Queensland University of Technology.)

While the gathering was conceived as an effort to find answers about the provenance of what may or may not be the world’s oldest fossil stromatolite, it served a major second purpose as well.  With NASA scheduled to send a life-detection mission to Mars in 2020 — the first of its kind since the days of the Viking landers in the 1970s — scientists were eager to learn what the site could tell them about the even thornier question of how to identify biosignatures on Mars and beyond.

That, in fact, was an engine driving the expedition.  At this point in space science and deep-time Earth science, the issue of biosignatures is both central and confounding.  Biosignatures are the primary pathway to learning if life has existed beyond Earth but, as has become increasingly clear,  they are very difficult to find and even harder to interpret.

Allwood described the kind of biosignatures now being pursued as follows:  While insects encased in amber can be seen and immediately identified, biosignatures are more like the “footprints and trapped breath of insects.  Textural and chemical ghosts.”

Dawn Sumner of the University of California, Davis,  one of the geologists present at Isua and someone with long experience looking for microbial influences in old rocks on Earth and on Mars (as a leader of the Curiosity Mars rover team ), put it another way.  The dynamic playing out, she said, is “a kind of detective game, but one with very few good clues.”  Even when microbes influence rocks, the clues often disappear when those rocks are heated and deformed.

No clear signs of life have been found in rocks as old as Isua’s, which are accepted to be in the range of 3.7 to 3.8 billion years old. Any clues that might indicate life was present have generally been obliterated by the churning of the Earth’s crust, or are more subtle than the ability of today’s science to detect them.  Which is too bad, because the very old rocks hold the information needed to understand the origins of life on Earth and early evolution, as well as whether life might exist beyond our planet.

So it was quite an important and dramatic moment when an Air Greenland helicopter landed on a rocky piece of Isua land, and the final group of scientists jumped out and descended to what is known as Site A. ( A previous group of eight had already been in the field for two days.)

The scientists clambered down a rocky slope to the contested site, eager to see and touch and study the ancient and controversial outcrop, and to hear what it might have to tell.

Site A in the Isua supercrustal belt, where one team of scientists argue remains were found of 3.7 billion-year-old life (Marc Kaufman)

On the other  side of the ridge from Site A is the beginning of the Greenland Ice Sheet. Notice the twisted rocks, a feature of the intense past geological activity in the Isua area.  (Marc Kaufman)

The first to present was Nutman, who has been studying the twisted, deformed Isua geology — miles upon miles on foot — for more than four decades.  The prized outcrop is smoother and unlike most all rocks in the area.  And that is what initially fascinated Nutman and his colleagues, Clark Friend and Vickie Bennett,  when they came across the outcrop, which had before always been covered with snowpack.

Unlike the surrounding outcrops that showed enormous twisting and turning, this rock looked like they could have been substantially less changed since it was formed, Nutman and colleagues concluded, on the bottom of a shallow sea.  And on this outcrop,  they saw four layers of about 20 small mounds and triangles that immediately struck them as being stromatolites.

Stromatolites — which still grow on Earth, most famously at Shark Bay in Western Australia — are formed when layers of sticky microbial biofilm collect sediments to their surfaces.  That sediment gradually cuts off nutrients for the biofilm and so a new layer of biofilm grows atop the sediment layer.  This can go on for ages, building up a layered structure that can in some instances get quite tall.  Because they are fossilized structures produced in conjunction with single-cell biology that does not get fossilized, stromatolites provide an rare window into life on early Earth.  But they are also hard to interpret.

In the case of the mounds and triangles at Site A, they are pointing down — although there is some dispute about this– which is definitely not how a stromatolite would grow. But since everything in the area had been twisted and turned so much, upside down stromatolities hardly seemed like a difficult problem to overcome.

But what is so contenrtious is how and why this outcrop had not been so deformed like everything else around it.  After all, the rocks had all been pulled down into the Earth’s crust eons ago and baked at very high temperatures.  And Nutman told me that before his discovery, he and his colleagues considered Isua “to be in too bad condition to ever find stromatolites; we used to joke about it.”

As Nutman explained it, the preservation at Site A was a “one in a trillion” event, but one with known geological precedence.  It sometimes happens that a piece of the surface gets preserved in the center of a subsurface geological fold, and later returns to the surface without being greatly deformed.  Certainly unlikely, he said, but it’s also unlikely that one or two homes always seem to be untouched by tornadoes that sweep through and destroy everything else around them.

Allen Nutman and Stanley Awaramik of the University of California, Santa Barbara at Site A.  Awaramik is a leader in the study of ancient stromatolites, which are very useful in assessing biosignatures of early life because their fossilized structure remains long after their biofilms are gone.  Awaramik said that it was not at all certain that the rock preserves evidence that ancient biofilms helped build those structures.  You couldn’t rule out the possibility, he said, but he did not consider the likelihood to be high.  (Marc Kaufman)

Abigail Allwood at Site A, measuring the orientation of lines and planes with a Brunton compass.  She was checking to see if the trend and plunge of the lines on top of the rock (which resulted from elongation) were similar to the trend and plunge of the long axes of the structures that had been interpreted as stromatolites.  She said that it was. (Marc Kaufman)

Nutman went on to say that the presence of the mineral dolomite, as well as some rare Earth elements, told of a seawater and sedimentary past.  Some isotopic signatures in the area were also important, he has argued for some time, though with substantial pushback. And the area has numerous banded iron formations, a sedimentary signature of the long ago presence of seawater.

These findings and more had been sufficiently persuasive to convince four reviewers at Nature in 2016, including Allwood herself, to recommend the piece be published.  She also wrote an accompanying commentary that discussed the major implications of the find, while writing as well that the finding needed considerably more data and proof.

Soon she decided that she needed to visit the site herself.  Already well respected for her work in proving (quite convincingly) the biological origins of stromatolites almost 3.5 billion years old in the Pilbara section of western Australia, she has been a hand’s on geologist who needs to collect samples and analyze geological contexts.   So she made plans to visit the site in 2017.

A stromatolite, with clear laminations, from Strelley Pool in Western Australia. Allwood identified the oldest stromatolite found in Strelley in 2009. That stromatolite fossil was determined to be 3.45 billion years old. (Wikipedia)

By that time she had begun collaborating with Minik Rosing, a Greenlandic-born, Danish geologist who has also spent many long weeks and months in Isua.  As it turns out, Rosing, a professor at the University of Copenhagen and chairman of the board of the University of Greenland, had written a letter to Nature vigorously contesting the Nutman paper, but the editors had decided not to publish it.

Allwood and Rosing got connected and planned their own trip to Isua and the site of Nutman’s discovery.  Both say that after a short time at the location, they were convinced that the reported stromatolites were not in fact stromatolites.

What struck her right away, Allwood said at the recent Site A visit, was that the stromatolites appeared to be lined up in rows, all on the same plane of the rockface.  “It was like they were little children with their toes lined up,” she said.  On the sea floor, stromatolites would not present like that.

Allwood, and other scientists at the site, also studied two disquieting aspects of the earlier stromatolite identification:  the apparent absence of the lamination lines characteristic of stromatolites and also that some of the features on the outcrop had rather pointed tops, which is not characteristic of stromatolites found in the environment proposed by Nutman.

But it was the seeming absence of laminations that weighed on Dawn Sumner and Stanley Awaramik in particular — both experts in the field.  Because stromatolites are formed by layers, it is in their essential nature to present as layered objects.

Nutman argued that some faint lamination lines could be seen and that the age of the samples and infiltration of obscuring minerals could account for the less than robust laminating.  The argument, however, met with resistance; the absence of a feature certainly doesn’t prove that it once existed.  In addition, the scientists knew that Allwood had done some cutting edge, ultra-high resolution examination of the forms  presented as stromatolites and found no evidence of life having been present when they formed.

That instrument is the Planetary Instrument for X-ray Lithochemistry (PIXL), which can rapidly measure elemental chemistry at sub-millimeter scales and can determine where those chemicals are in relation to each other.  PIXL will fly to Mars as one of the key instruments on the 2020 rover.  The principal investigator for PIXL is Allwood.

Minik Thorleif Rosing of the University of Copenhagen, a Greenlander by birth who has studied the rocks of Isua for decades. (Dawn Sumner)

Nutman has a number of significant geological findings to his name and is no stranger to controversy.  He says, in fact, that he expects it and showed himself to be willing to go to the field, and have a follow-up workshop, with scientists likely to reject many of his interpretations.  He also said that he is in the Isua stromatolite debate for the long haul and that he didn’t expect the question to have a clear resolution for another five to ten years.

Among the most active skeptics is Rosing, a prominent international geologist himself.  He and Nutman had actually worked together for a while some decades ago and had each developed a very different theory about the overall shape and nature of the Isua belt.

When the geology team was at the Isua site, Rosing led them across a boulder field to a large outcrop with long-ago lithified bands of brown carbonate minerals.  These bands, he said, pointed to something important about the geological context in which the claimed stromatolite outcrop lies.

Carbonates can be formed through biology — seashells, for instance, or stromatolites — or through abiotic processes.

While Nutman argued that the dolomite carbonates surrounding the Site A structures were formed from biology, Rosing pointed to the outcrops with carbonate bands as a sure sign that the mineral was actually formed without biology and was common throughout the area.

In addition, Rosing was persuaded that he knew where the carbonates came from.  A short way up the rocky valley Rosing had found a large deposit of the clay mineral hydrated magnesium silicate — better known as talc.  The mineral, he explained, releases its carbon dioxide under the heat and stress of tectonic burial (at Isua, at a depth of 15 miles and at temperatures of 500 degrees F) and that can form the carbonates found on nearby ridges and at Site A itself.  The bands Rosing showed would be flowing carbonates in the deep-Earth oven.

“The carbonates are everywhere and I wanted to see if I could find a talc origin,” he said.  “So I walked up the valley and there it was; a large deposit.  It was one of those satisfying times when predictions are confirmed.  We don’t need a biological source to explain the carbonates and the dolomite (a form of carbonate) they found in Site A and interpreted as having come from biology.”

The key to Isua, he said, is identifying the geological and geochemical connections between its varied parts, and then to come up with the most straight-forward explanation of why things are as they are.

Isua outcrop with rock layers pushed and pulled in ways that produce brown carbonate structures that look similar to the hypothesized stromatolites.  (Mark Van Zuilen)

One of the geologists on several long explores was Mark Van Zuilen of the Institut de Physique du Globe de Paris.  In his wanders, he looked for examples of “folding” in rock faces, a sign that the material had been under great geological stress and had buckled.

He and I were on two outcrops where we saw that phenomenon and gradually it became apparent that little bumps and even dome-like structures were pretty common in the outcrops.  The face of the rocks were much more weathered than that of Site A, but the rock there had been protected by the snowpack for untold centuries and so might be expected to be smoother.  Also, Nutman et al had argued that the geological compression and folding at Site A was on a substantially wider scale than anything like the samples  found by Van Zuilen.

The inevitable question was whether or not the same deformation forces that formed all the bumps found at many other Isua outcrops might have also formed the “stromatolite” structures.  The possibility was great enough that other members of the team wanted to cross some more boulder fields and take a look.

Later, Nutman’s colleague Clark Friend said that the “bumps” were geological structures called mullions, which occur when rocks are strongly deformed.  He called them entirely different from the hypothesized stromatolites, but not all the geologists seemed convinced.

Joel Hurowitz, a geochemist and planetary scientist at Stony Brook University, was one of the scientists who found the bumps on the more distant outcrop to be intriguing.  He later searched for similar features closer to Site A, found them, and later presented them to the full entourage.  He agreed that what he and Van Zuilen had found probably are mullions but added  “why shouldn’t we also consider the Site A structures to be mullions of some kind, especially given how common they appear to be in the area?”

By the end of the gathering, there was no real consensus in terms of the stromatolites in that Nutman and Friend held fast to their interpretation and so did Allwood.  But the other scientists did reach a general agreement that the evidence presented did not clear the high bar that comes with the claim of having found the oldest sign of life on Earth.  Some, however, left the door open for new evidence that could conceivably change minds.

That there could be such disagreements about outcrops and rocks that are large, touchable and endlessly  testable illustrates precisely why an outing like the one to Isua is significant,  and the logic gets back to the question of biosignatures.  They are, to say the least, a challenge.

Allwood and James Bell of Arizona State University, principal investigator of the Mastcam-Z camera system on the Mars 2020 rover.  The two were at Site A discussing whether they would recommend stopping to do a full study of the rock if they saw it on Mars.   Bell said “yes,” Allwood wasn’t sure and said the geological context would determine her answer.  (Marc Kaufman)

Famously in the history of space exploration, the Viking landers did send back some results in the mid 1970s that could be interpreted as having detected signs of life.  Indeed, the most controversial experiment produced results that met the standards for a life detection set by NASA and the principal investigator argues to this day that his instrument found life on Mars.

Other Viking instruments returned  conflicting data, and the consensus scientific view was ultimately that no life was present.  What was also clearly not present was the knowledge needed to understand how to test for life, or signs of ancient life, on the surface of Mars.

It took more than 40 years and lots of research into biosignatures for the agency to conclude that a life-detection mission was finally in order once again.

So it was no coincidence that four members of the Isua geology expedition were principal investigators for instruments going to Mars in 2020.

They included Allwood and the PIXL instrument; James Bell, who will lead the Mastcam-Z team and its camera system with panoramic, zooming and stereoscopic imaging capabilities; Luther Beegle of SHERLOC ; which uses spectrometers, a laser and a camera to search for organics and minerals that have been altered by watery environments; and Svein-Erik Hamran, in charge of the RIMFAX instrument,  which looks for geologic features under the surface with ground-penetrating radar.  (That instrument will be the first developed and built in Norway to operate on Mars.)

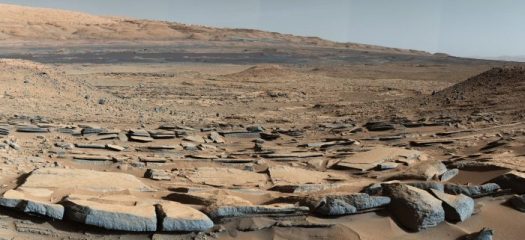

A view from the “Kimberley” formation of Gale Crater on Mars taken by NASA’s Curiosity rover. The mission has confirmed the long-ago presence of large amounts of water on the planet, as well as organic compounds needed for life. Curiosity was not equipped to be a life detection mission, but the follow-up Mars 2020 rover mission will be.  (NASA/JPL-Caltech/MSSS)

These instruments will be used to identify sites on Mars that have attributes that could preserve biosignatures and deserve a closer look, which SHERLOC and especially PIXL will give.  They will be looking for those most subtle anomalies that, as Allwood put it, represent “textual and chemical ghosts.”  As in the possible ancient presence of biology.

Microbes change the texture and chemistry of their environment.  An example that biosignature scientists lik to give is the plaque your dentist scrapes off your teeth. That hard stuff is minerals left behind by millions of bacteria. It’s an example of a “biofilm.”

Biofilms form when a group of microbes stick together to form a surface. You can find biofilms on surfaces everywhere in nature. PIXL can potentially detect signs of biofilms made by microbes in the Martian environment long ago because rocks on Earth can and sometimes do preserve those biologically-created textures and chemistries.

What is new about PIXL is the level of detail it provides.  The instrument uses a very tiny (about 0.3 mm diameter), powerful x-ray beam to rapidly measure the elemental chemistry of rocks. In about 10 seconds it can accurately measure and map the chemistry of an individual grain of sand.

In their assessment of Isua stromatolite, Allwood and her team used PIXL to read the elemental chemistry of their sample for those biologically-influenced changes.  They report that it did not contain any of the chemical transformations associated with the long-ago presence of anything alive.

On Mars, the PIXL instrument will sit on the extendable arm of the rover, and will scan the surfaces of rocks to produce similar postage-sized maps overnight, while the rover is sleeping.


The lab PIXL instrument, a duplicate of the one now attached to the 2020 rover, in a JPL lab.  The flashing lights captured in the video are the “flood illuminator ring” for daytime and nighttime PIXL use.  The lights on the front of the instrument are a combination of red, green, blue and ultraviolet lamps that, when fired at the same time, produce white light illumination of the target. The lights will be used in the daytime to minimize the effect of shadowing on the images and at night because of the dark. The lights were all on when the video was taken and the disco-strobe appearance of the lights is a function of the speed of the video. (Abigail Allwood)


“There is a real possibility that the team will find itself attempting to evaluate a potential biosignature on Mars in the next five years,”  Allwood said.  “When that happens, we need to already have a pretty detailed, solid understanding of the processes that formed the rocks we find that potential biosignature in. Otherwise we might get a false positive.”

As explained by Mastcam-Z principal investigator Bell, the Mars instruments will be looking for signs of ancient life going back to the same period — some 3.5 to 4 billion years ago — that they were studying in Isua.

That 3.5 to 4 billion-years-ago period is when Mars was much wetter and warmer, and when life just might have started.  And unlike on Earth, the geology would have stayed pretty much the same there since tectonics on Mars appears to be much less vigorous than tectonics on our planet.

“When we land on Mars, we’ll be on rocks about the same age as here at Isua,” Bell said.  “Rocks that have very different histories, but are from the same period in the history of the solar system…That’s something big to take in.”

And no doubt some of those rocks will have features that put them in the potential biosignature category.  As the Isua rocks demonstrate, that’s an very exciting, compelling arena for scientists.

But it’s also a most uncomfortable place because there are so many reasons why a potential biosignature needs to be taken seriously, and so many reasons why it should not.  That’s what happens when your goal is, at its most challenging, to “find the trapped breath of insects.”
